Authorised distributor · Australia, NZ, ASEANOnline oil monitoring

Poseidon Systems Trident™ – a continuous "blood test" for gearboxes and oil systems

Lubricating oil carries every trace of wear inside a machine. The Trident sensor sits directly on the oil line, measuring oil quality and counting metal debris 24/7 – the earliest and most reliable way to know that gears and bearings are failing.

Nominate a gearbox / oil system Download the catalogue (PDF)
In simple terms: instead of sampling oil every 3 months, sending it to a lab and waiting for results (by which time the machine may already have failed), you have a test instrument mounted right on the oil line. The day the oil starts to degrade, takes on water or shows iron particles, you know.
Real-world photos

Poseidon Systems Trident™ in the field

Trident QW3100 oil quality sensor
Trident QW3100 oil quality sensor

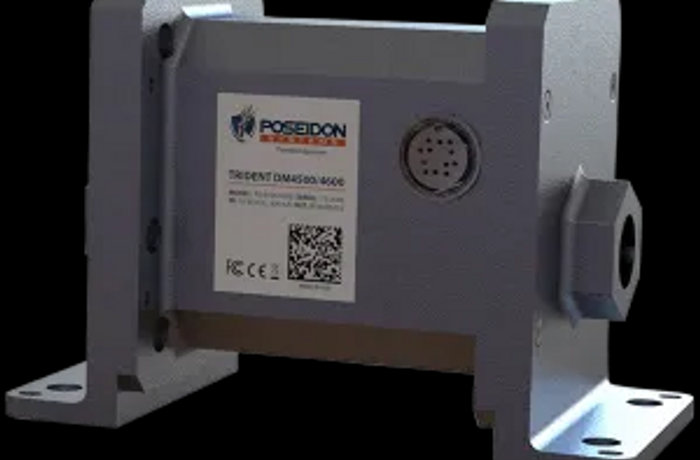

Trident Wear Debris Monitor – in-line metal debris measurement
Trident Wear Debris Monitor – in-line metal debris measurement

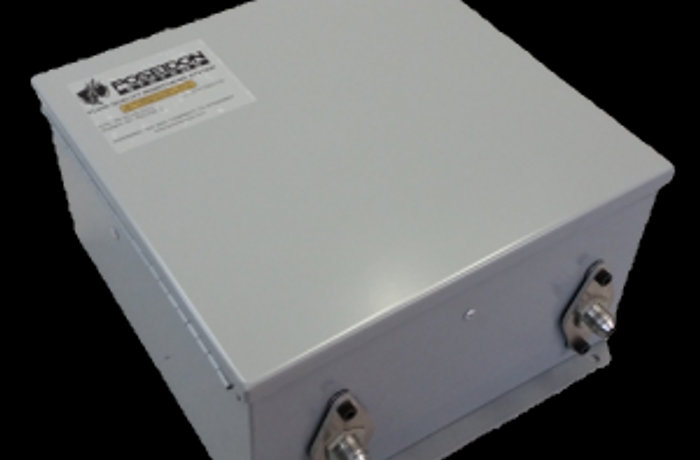

FQMS 2.0 fluid quality monitoring system
FQMS 2.0 fluid quality monitoring system

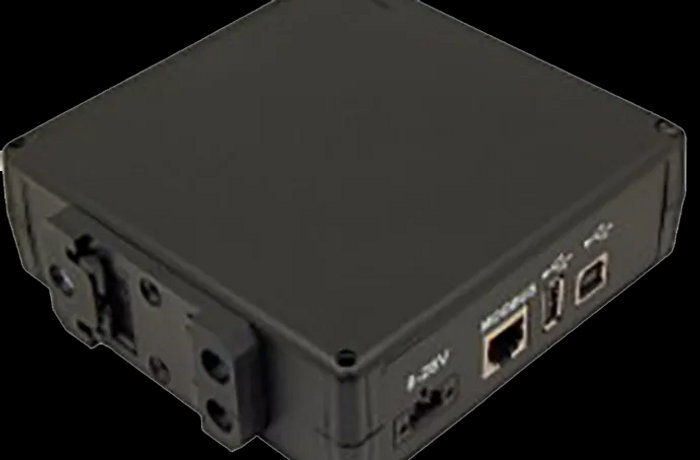

Gateway Trident AP2200
Gateway Trident AP2200

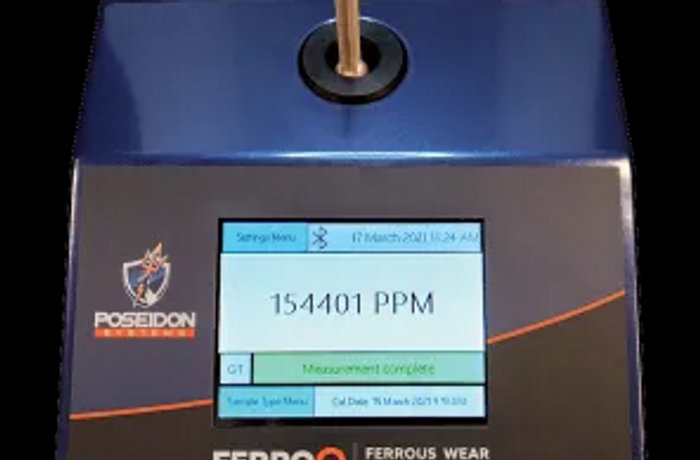

Benchtop and portable ferrous wear analysers
Benchtop and portable ferrous wear analysers

Photos: PlusSmart Technology (plussmart.tech).

How it works

How Poseidon Trident works

1stepsInstall the sensor on the oil line2stepsMeasure oil quality & metal debris3stepsGateway sends data to the cloud4stepsAlerts and oil life forecasts
Real-time oil qualityKnow the current oil condition, degradation trends and water contamination – without waiting for the lab.
Remaining useful oil life (RUL) forecastChange oil based on condition rather than schedule, significantly cutting oil consumption and cost.
Online metal debrisDetects ferrous and non-ferrous particles in the oil – the earliest sign of mechanical failure in oil-lubricated equipment.
Reliability event alertsTracks trends and alerts on abnormal changes, feeding into the maintenance plan.
IIoT readyThe AP2200 gateway connects sensors to the Internet for easy, reliable data collection and SCADA/cloud integration.
On-the-spot testingPortable and benchtop ferrous wear analysers give instant results in the field or the workshop.
Products & modules

What Poseidon Systems Trident™ includes

Trident QW3100 / QM3100

Oil quality sensors.

  • Current oil condition and trends
  • Reliability event alerts
  • RUL forecast – remaining useful oil life
  • Lower oil consumption with condition-based oil changes

Trident™ Wear Debris Monitor

In-line metal debris sensor.

  • Real-time detection of metal debris and contaminant particles
  • The earliest method of detecting mechanical failure in oil-lubricated equipment

Trident FQMS 2.0

Advanced IIoT oil quality monitoring system for critical equipment.

  • Designed and tested for mining, locomotives, heavy vehicles, power generation and marine
  • Multiple sensors in one system

Trident AP2200

Edge device and data transmission.

  • Connects sensors to the Internet
  • Easy, reliable data collection

Ferrous Wear Analyzers

Portable and benchtop instruments.

  • High-accuracy analysis of oil condition, metal debris and contamination
  • For use in the field or in the laboratory
  • Less reliance on external oil analysis
Suitable for

Typical equipment and industries

Wind turbine gearboxesCement mill gearboxesSteam and gas turbine lube oil systemsCompressorsConveyor and rolling mill gearboxesLocomotives, heavy trucksMarine equipmentHydropower
Real results
5.000+Poseidon systems running in wind power worldwide
400+Duke Energy turbines use Poseidon
Gear tooth fault detectedDocumented case: a Poseidon sensor detected a gearbox tooth fault that both borescope inspection and vibration analysis missed
How to start

Nominate your plant's most critical gearbox or oil system for assessment.

PlusSmart installs a trial sensor running alongside your current oil sampling schedule – you compare the two methods yourself and see how much earlier the sensor warns.

Nominate a gearbox / oil system
In-depth technical guide to Poseidon Trident

Why oil monitoring detects failure earliest, the key oil parameters (metal debris, water, ISO 4406) and where to install sensors.

Read the guide: Online oil monitoring →Read the full technical article on HOANTRANTDH →
FAQ

Poseidon Trident frequently asked questions

Does the equipment need to be stopped to install the sensor?

The sensor is installed on the oil line, usually on a branch that can be isolated; PlusSmart surveys the site to choose a location that fits your shutdown schedule.

Does it completely replace sending oil samples for analysis?

Online monitoring gives early, continuous warning; laboratory analysis remains useful for detailed confirmation. Many plants greatly reduce how often they send samples.

Which oils can it measure?

Industrial lubricating oils for gearboxes, turbines, compressors and hydraulics – PlusSmart confirms suitability for each application.

Works with
i-ALERT®Wireless vibration, temperature and run-time sensorElectroSine ESine3 / ESine4Electrical signature analysis for motors and driven equipmentPlusSmart AnalyticsPump-engineer-led data analytics
